Weld-On Pad Eyes – DPLP
Manufactured using only heat certified Australian Steel.
- Forged from G300 Mild Steel – AS3679.1 Grade 300PLUS
- Full Working Load Limit in all directions
- 4:1 Design Factor
- Surface Phosphated
- If using the DPLP as a lashing point, stated WLL can be doubled
- Available in sizes 1.6t, 2.5t, 4.0t, 6.7t and 10t
- Welding shall always be carried out by a qualified person to AS1554.1:2014
NEVER EXCEED THE WORKING LOAD LIMIT!

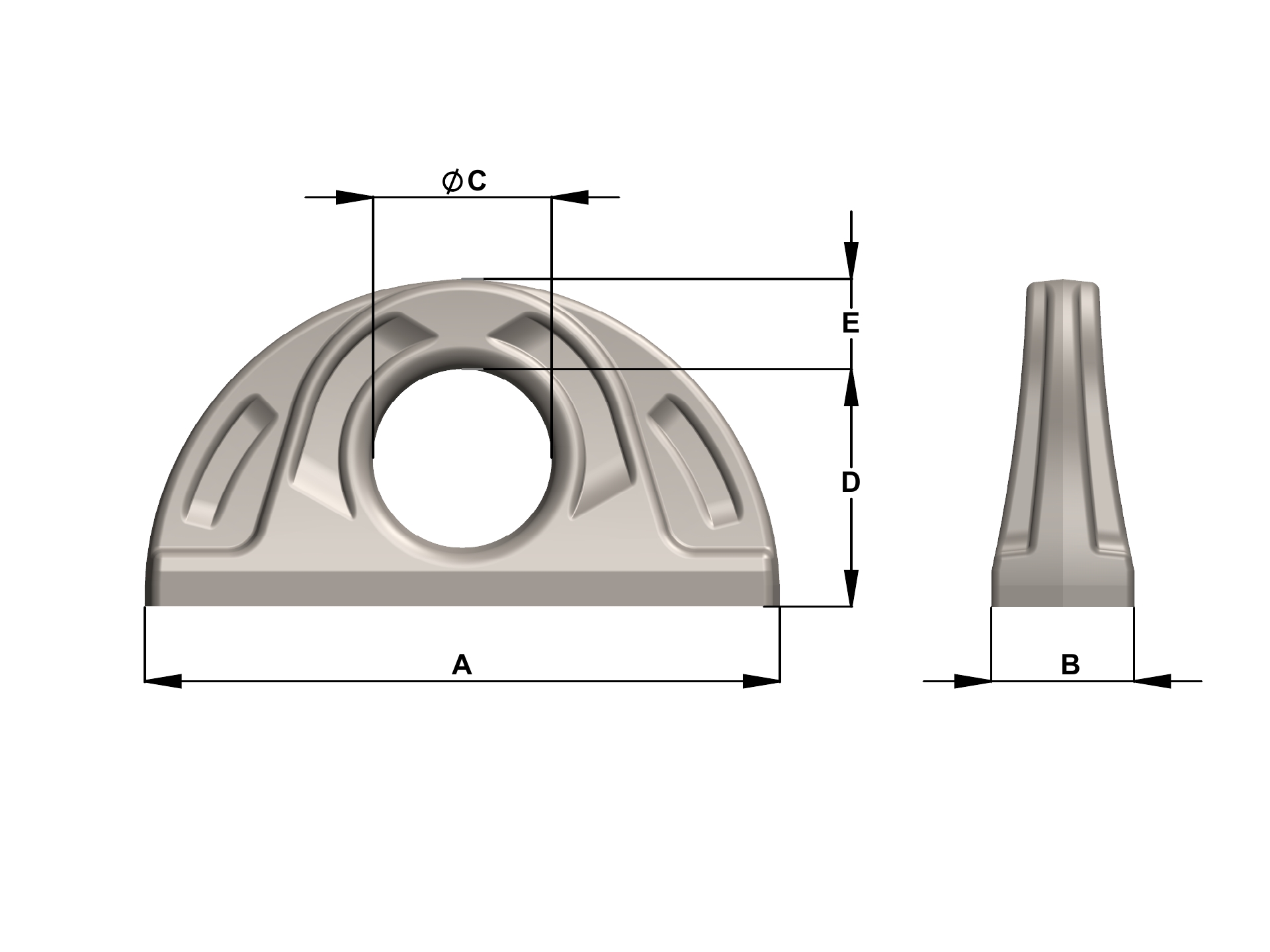

| Type | Working Load Limit (t) | A | B | C | D | E | Weight (kg) | Product Code | CAD |
|---|---|---|---|---|---|---|---|---|---|
| Pad Eye | 1.6 | 100 | 24 | 30 | 42 | 18 | 0.58 | DPLP160 | Register |
| Pad Eye | 2.5 | 130 | 28 | 35 | 48 | 20 | 0.85 | DPLP250 | Register |
| Pad Eye | 4 | 160 | 38 | 45 | 62 | 22 | 1.72 | DPLP400 | Register |
| Pad Eye | 6.7 | 180 | 46 | 60 | 76 | 28 | 2.82 | DPLP670 | Register |
| Pad Eye | 10 | 240 | 70 | 80 | 100 | 36 | 6.02 | DPLP1000 | Register |
