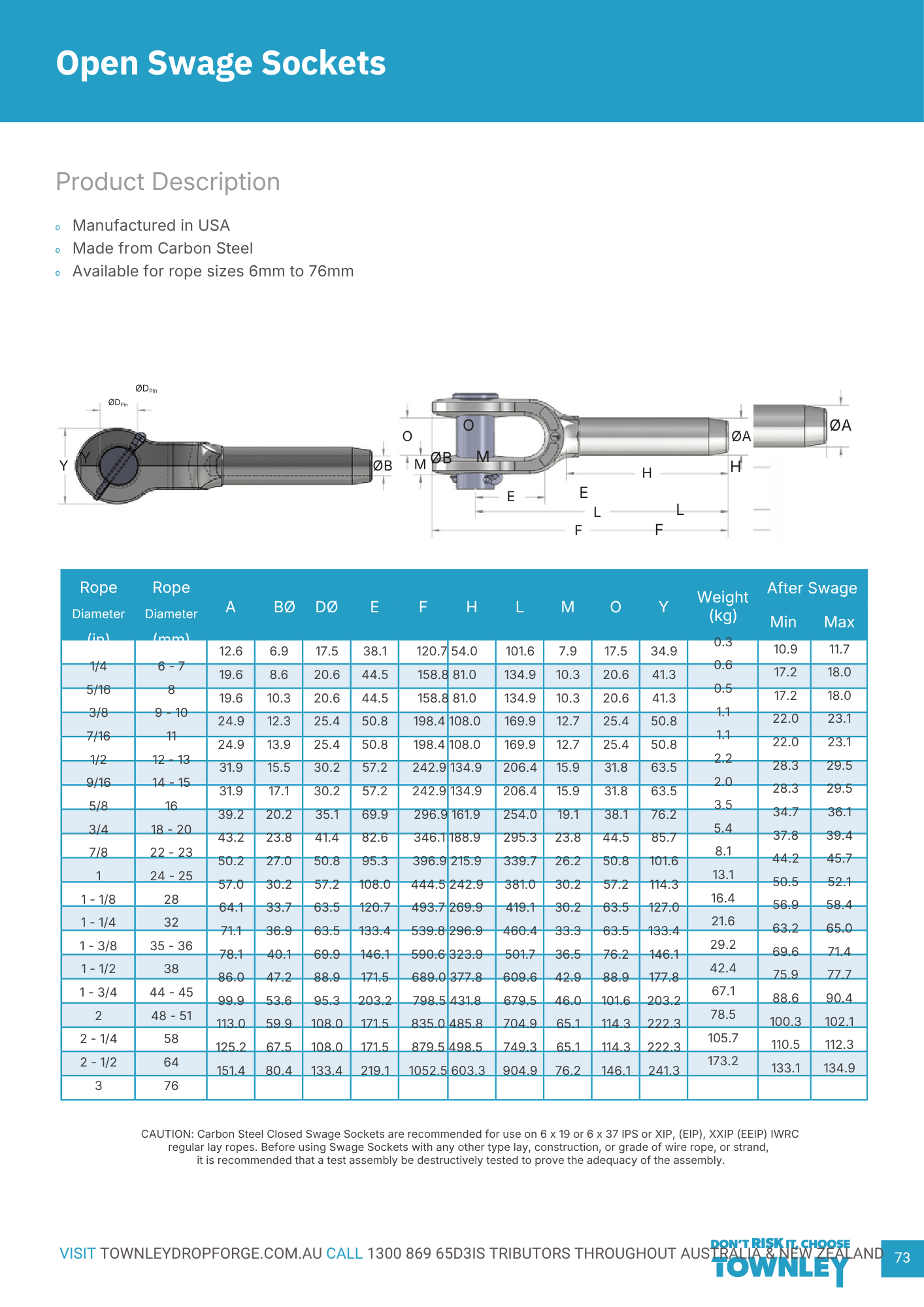

Open Swage Sockets
- Manufactured in USA
- Made from Carbon Steel
- Available for rope sizes 6mm to 76mm

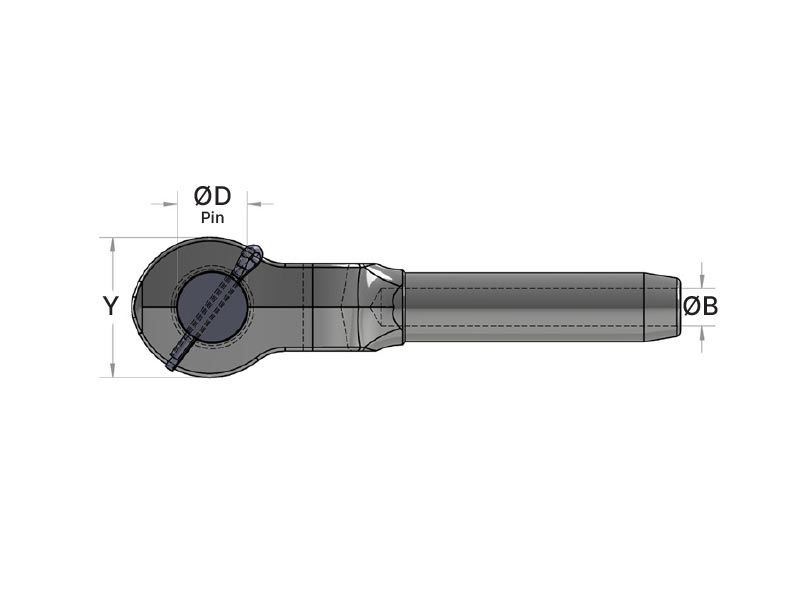

| Part Number | Rope Dia. (in) | Rope Dia. (mm) | A | B | D | E | F | H | L | M | O | Y | WEIGHT KG | MIN | MAX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OSS250 | 1/4 | 6 - 7 | 12.6 | 6.9 | 17.5 | 38.1 | 120.7 | 54.0 | 101.6 | 7.9 | 17.5 | 34.9 | 0.3 | 10.9 | 11.7 |
| OSS312 | 5/16 | 8 | 19.6 | 8.6 | 20.6 | 44.5 | 158.8 | 81.0 | 134.9 | 10.3 | 20.6 | 41.3 | 0.6 | 17.2 | 18.0 |
| OSS375 | 3/8 | 9 - 10 | 19.6 | 10.3 | 20.6 | 44.5 | 158.8 | 81.0 | 134.9 | 10.3 | 20.6 | 41.3 | 0.5 | 17.2 | 18.0 |
| OSS437 | 7/16 | 11 | 24.9 | 12.3 | 25.4 | 50.8 | 198.4 | 108.0 | 169.9 | 12.7 | 25.4 | 50.8 | 1.1 | 22.0 | 23.1 |
| OSS500 | 1/2 | 12 - 13 | 24.9 | 13.9 | 25.4 | 50.8 | 198.4 | 108.0 | 169.9 | 12.7 | 25.4 | 50.8 | 1.1 | 22.0 | 23.1 |
| OSS562 | 9/16 | 14 - 15 | 31.9 | 15.5 | 30.2 | 57.2 | 242.9 | 134.9 | 206.4 | 15.9 | 31.8 | 63.5 | 2.2 | 28.3 | 29.5 |
| OSS625 | 5/8 | 16 | 31.9 | 17.1 | 30.2 | 57.2 | 242.9 | 134.9 | 206.4 | 15.9 | 31.8 | 63.5 | 2.0 | 28.3 | 29.5 |
| OSS750 | 3/4 | 18 - 20 | 39.2 | 20.2 | 35.1 | 69.9 | 296.9 | 161.9 | 254.0 | 19.1 | 38.1 | 76.2 | 3.5 | 34.7 | 36.1 |
| OSS875 | 7/8 | 22 - 23 | 43.2 | 23.8 | 41.4 | 82.6 | 346.1 | 188.9 | 295.3 | 23.8 | 44.5 | 85.7 | 5.4 | 37.8 | 39.4 |
| OSS1000 | 1 | 24 - 25 | 50.2 | 27.0 | 50.8 | 95.3 | 396.9 | 215.9 | 339.7 | 26.2 | 50.8 | 101.6 | 8.1 | 44.2 | 45.7 |
| OSS1125 | 1 - 1/8 | 28 | 57.0 | 30.2 | 57.2 | 108.0 | 444.5 | 242.9 | 381.0 | 30.2 | 57.2 | 114.3 | 13.1 | 50.5 | 52.1 |
| OSS1250 | 1 - 1/4 | 32 | 64.1 | 33.7 | 63.5 | 120.7 | 493.7 | 269.9 | 419.1 | 30.2 | 63.5 | 127.0 | 16.4 | 56.9 | 58.4 |
| OSS1375 | 1 - 3/8 | 35 - 36 | 71.1 | 36.9 | 63.5 | 133.4 | 539.8 | 296.9 | 460.4 | 33.3 | 63.5 | 133.4 | 21.6 | 63.2 | 65.0 |
| OSS1500 | 1 - 1/2 | 38 | 78.1 | 40.1 | 69.9 | 146.1 | 590.6 | 323.9 | 501.7 | 36.5 | 76.2 | 146.1 | 29.2 | 69.6 | 71.4 |
| OSS1750 | 1 - 3/4 | 44 - 45 | 86.0 | 47.2 | 88.9 | 171.5 | 689.0 | 377.8 | 609.6 | 42.9 | 88.9 | 177.8 | 42.4 | 75.9 | 77.7 |
| OSS2000 | 2 | 48 - 51 | 99.9 | 53.6 | 95.3 | 203.2 | 798.5 | 431.8 | 679.5 | 46.0 | 101.6 | 203.2 | 67.1 | 88.6 | 90.4 |
| OSS2250 | 2 - 1/4 | 58 | 113.0 | 59.9 | 108.0 | 171.5 | 835.0 | 485.8 | 704.9 | 65.1 | 114.3 | 222.3 | 78.5 | 100.3 | 102.1 |
| OSS2500 | 2 - 1/2 | 64 | 125.2 | 67.5 | 108.0 | 171.5 | 879.5 | 498.5 | 749.3 | 65.1 | 114.3 | 222.3 | 105.7 | 110.5 | 112.3 |
| OSS3000 | 3 | 76 | 151.4 | 80.4 | 133.4 | 219.1 | 1052.5 | 603.3 | 904.9 | 76.2 | 146.1 | 241.3 | 173.2 | 133.1 | 134.9 |
