Codipro Universal Double Swivel Shackle (GIGA.DSS)

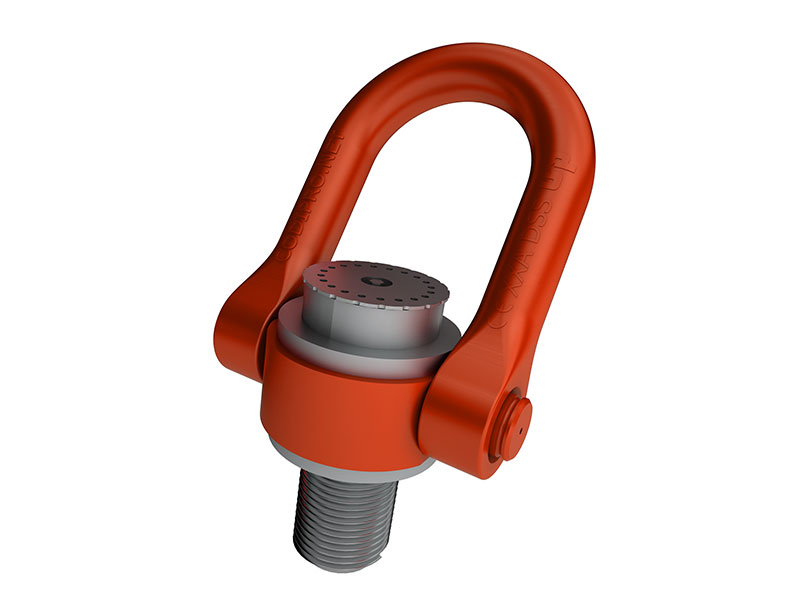

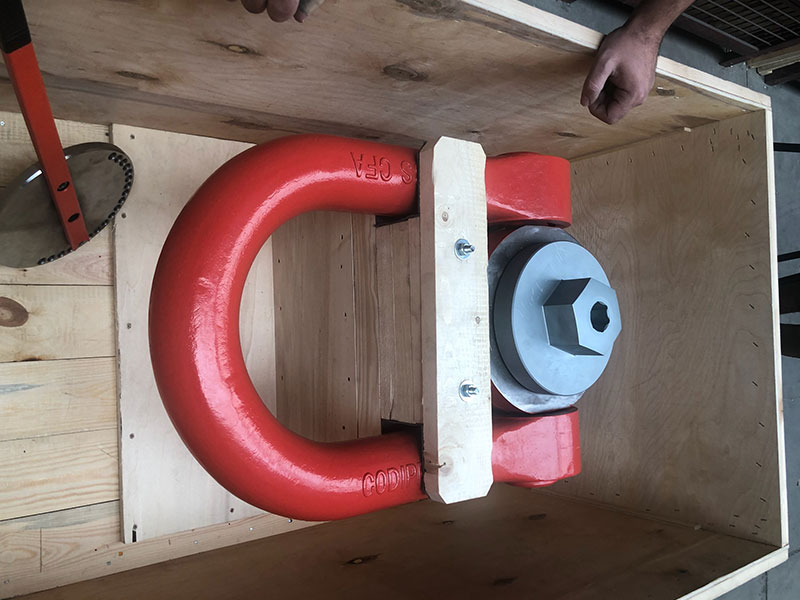

The universal lifting ring GIGA.DSS is a double swivel ring for lifting loads up to 125 tons in one single attachment point. It is composed of a GRADUP lifting ring designed for rotations under load. Its double swivel ensures perfect alignment with the sling. The lifting ring can swivel 180° but has a rotating range of 360°. It can be used for any lifting configuration (straigt lift, with angle, tilting, rotating).
The universal lifting ring GIGA.DSS is approved for all lifting configurations from 0° to 90°, designed for use in a temperature range from -20°c to +200°c and carries various markings, including CE, WLL and tightening torque. It is manufactured in compliance with the REACH regulation.
- European Quality
- Higher working load limits
- Full double swivel action giving greater flexibility and functionality
- Easier to use in more applications
- Eliminates the issues of offset loading with other swivel lifting points
| Product Code | Diameter | SF 5:1 WLL (t) | Standard L1 (mm) | Torque (Nm) | S1 (mm) | S2 (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kg) | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GIGA.DSS M150-UP | M 150 (x6) | 125,00 | 228 | 2000 | 41 | 105 | 271 | 115 | 290 | 353 | 302 | 544 | 103 | 268 | Register |
| GIGA.DSS+Q M150-UP | M 150 (x6) | 125,00 | 230 | 160 | 21 | XZN N12 DIN 34824 | 267 | 115 | 290 | 353 | 302 | 544 | 103 | 268 | Register |
