Eye & Eye Turnbuckles
- AS2319 – 2001
- 6:1 Safety Factor
- Grades L, P & S
- Tested and Certified
- Galvanized
- Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Available on Request:
- Lock Nuts

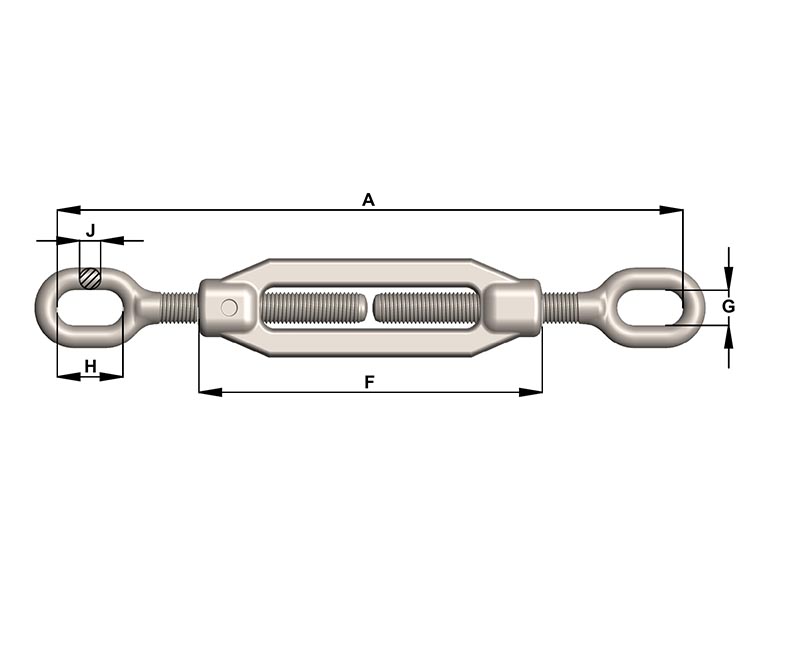

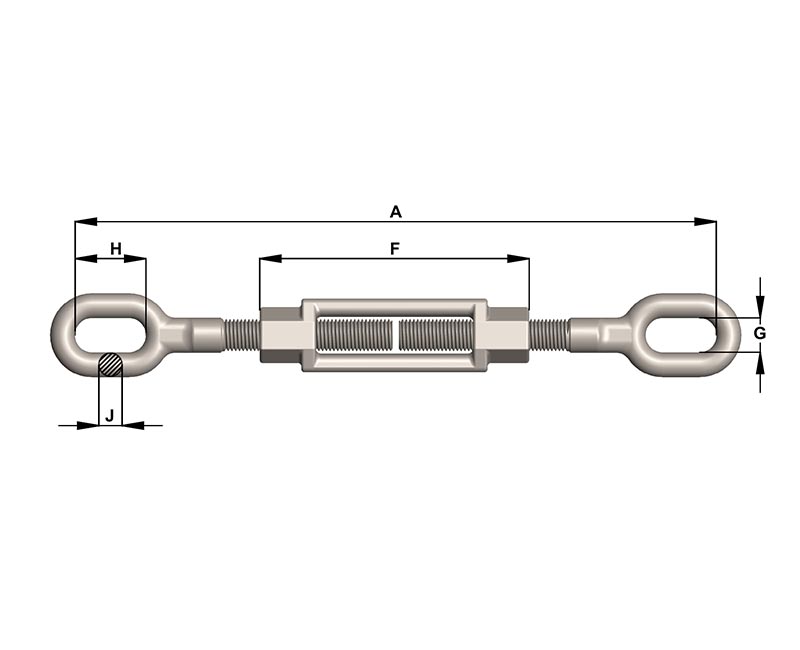

| Type | Working Load Limit (t) | Nominal Size | A Closed | A Open | F | G | H | J | Weight (kg) | Product Code | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade L | 0.3 | M10 | 230 | 335 | 150 | 11 | 21 | 7 | 0.35 | TBEEL10 | Register |
| Grade L | 0.5 | M12 | 330 | 470 | 190.5 | 15 | 30 | 9 | 0.67 | TBEEL12 | Register |
| Grade L | 0.75 | M16 | 350 | 485 | 204 | 17 | 36 | 12 | 1.5 | TBEEL16 | Register |
| Grade L | 1.25 | M20 | 385 | 515 | 216.5 | 21 | 42 | 14 | 2.16 | TBEEL20 | Register |
| Grade L | 2.5 | M24 | 440 | 570 | 232 | 25 | 51 | 17 | 3.5 | TBEEL24 | Register |
| Grade L | 5 | M33 | 656 | 806 | 252 | 33 | 70 | 24 | 6.5 | TBEEL33 | Register |
| Grade L | 5 | 1.25 | 570 | 720 | 255 | 33 | 67 | 22 | 6.33 | TBEEL1250 | Register |
| Grade L | 6 | 1.5 | 600 | 740 | 275 | 38 | 72 | 25 | 8.85 | TBEEL1500 | Register |
| Grade P | 0.6 | M10 | 230 | 335 | 150 | 11 | 21 | 7 | 0.35 | TBEE10P | Register |
| Grade P | 1 | M12 | 330 | 470 | 190.5 | 15 | 30 | 9 | 0.67 | TBEE12P | Register |
| Grade P | 1.6 | M16 | 350 | 485 | 204 | 17 | 36 | 12 | 1.5 | TBEE16P | Register |
| Grade P | 2.5 | M20 | 385 | 515 | 216.5 | 21 | 42 | 14 | 2.16 | TBEE20P | Register |
| Grade P | 4 | M24 | 440 | 570 | 232 | 25 | 51 | 17 | 3.5 | TBEE24P | Register |
| Grade P | 8 | M33 | 656 | 806 | 252 | 33 | 70 | 24 | 6.5 | TBEE33P | Register |
| Grade S | 0.8 | M10 | 230 | 335 | 150 | 11 | 21 | 7 | 0.35 | TBEE10S | Register |
| Grade S | 1.2 | M12 | 330 | 470 | 190.5 | 15 | 30 | 9 | 0.67 | TBEE12S | Register |
| Grade S | 2 | M16 | 350 | 485 | 204 | 17 | 36 | 12 | 1.5 | TBEE16S | Register |
| Grade S | 3.2 | M20 | 385 | 515 | 216.5 | 21 | 42 | 14 | 2.16 | TBEE20S | Register |
| Grade S | 5 | M24 | 440 | 570 | 232 | 25 | 51 | 17 | 3.5 | TBEE24S | Register |
| Grade S | 10 | M33 | 656 | 806 | 252 | 33 | 70 | 24 | 6.5 | TBEE33S | Register |
