Closed Swage Sockets
- Manufactured in USA
- Made from Carbon Steel
- Available for rope sizes 6mm to 76mm

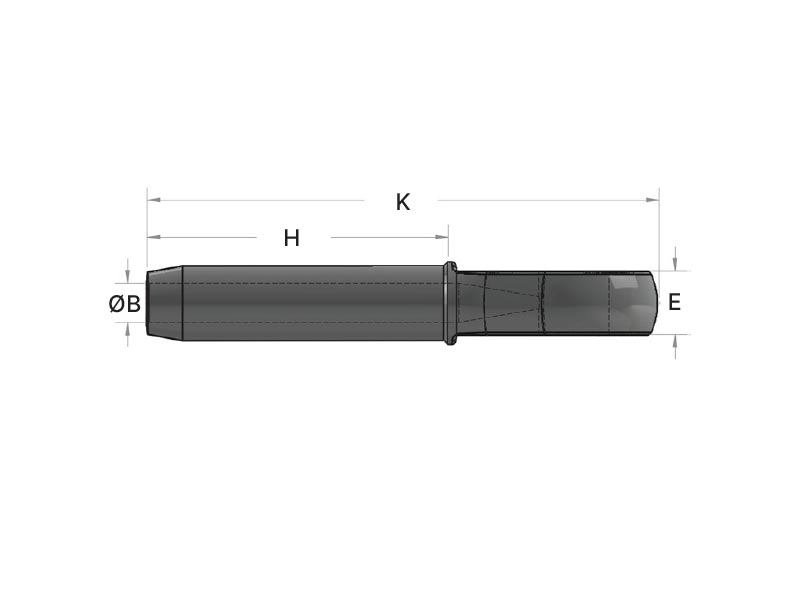

| Part Number | Rope Dia. (in) | Rope Dia. (mm) | A | B | C | D | E | H | K | L | WEIGHT KG | MIN | MAX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CSS250 | 1/4 | 6 - 7 | 12.6 | 6.9 | 36.5 | 19.1 | 12.7 | 54 | 111.1 | 88.9 | 0.2 | 10.9 | 11.7 |
| CSS312 | 5/16 | 8 | 19.6 | 8.6 | 42.9 | 22.2 | 17.5 | 81 | 139.7 | 114.3 | 0.3 | 17.2 | 18 |
| CSS375 | 3/8 | 9 - 10 | 19.6 | 10.3 | 42.9 | 22.2 | 17.5 | 81 | 139.7 | 114.3 | 0.3 | 17.2 | 18 |
| CSS437 | 7/16 | 11 | 24.9 | 12.3 | 50.8 | 27 | 22.2 | 108 | 176.2 | 146.1 | 0.7 | 22 | 23.1 |
| CSS500 | 1/2 | 12 - 13 | 24.9 | 13.9 | 50.8 | 27 | 22.2 | 108 | 176.2 | 146.1 | 0.6 | 22 | 23.1 |
| CSS562 | 9/16 | 14 - 15 | 31.9 | 15.5 | 63.5 | 31.8 | 28.3 | 134.9 | 222.3 | 184.2 | 1.3 | 28.3 | 29.5 |
| CSS625 | 5/8 | 16 | 31.9 | 17.1 | 63.5 | 31.8 | 28.3 | 134.9 | 222.3 | 184.2 | 1.3 | 28.3 | 29.5 |
| CSS750 | 3/4 | 18 - 20 | 39.2 | 20.2 | 76.2 | 36.5 | 33.3 | 162 | 263.5 | 219.1 | 2.3 | 34.7 | 36.1 |
| CSS875 | 7/8 | 22 - 23 | 43.2 | 23.8 | 88.9 | 42.9 | 38.1 | 188.9 | 307.7 | 257.2 | 3.4 | 37.8 | 39.4 |
| CSS1000 | 1 | 24 - 25 | 50.2 | 27 | 101.6 | 52.4 | 44.5 | 215.9 | 349.3 | 292.1 | 5.1 | 44.2 | 45.7 |
| CSS1125 | 1-1/8 | 28 | 57 | 30.2 | 114.3 | 58.8 | 50.8 | 242.9 | 387.4 | 323.9 | 7.3 | 50.5 | 52.1 |
| CSS1250 | 1-1/4 | 32 | 64.1 | 33.7 | 127 | 65.1 | 57.2 | 269.9 | 438.2 | 365.1 | 10.3 | 56.9 | 58.4 |
| CSS1375 | 1-3/8 | 35 - 36 | 71.1 | 36.9 | 133.4 | 65.1 | 57.2 | 296.9 | 479.4 | 400.1 | 13.2 | 63.2 | 65 |
| CSS1500 | 1-1/2 | 38 | 78.1 | 40.1 | 139.7 | 71.5 | 63.5 | 323.9 | 517.5 | 431.8 | 17 | 69.6 | 71.4 |
| CSS1750 | 1-3/4 | 44 - 45 | 86 | 47.2 | 146.1 | 90.5 | 76.2 | 377.8 | 609.6 | 508 | 25.3 | 75.9 | 77.7 |
| CSS2000 | 2 | 48 - 51 | 99.9 | 53.6 | 196.9 | 96.9 | 82.6 | 431.8 | 698.5 | 584.2 | 40.8 | 88.6 | 90.4 |
| CSS2250 | 2-1/4 | 58 | 113 | 59.9 | 219.1 | 109.5 | 101.6 | 485.5 | 755.7 | 631.8 | 56.7 | 100.3 | 102.1 |
| CSS2500 | 2-1/2 | 64 | 125.2 | 67.5 | 219.1 | 109.5 | 101.6 | 498.5 | 790.3 | 666.8 | 64.4 | 110.5 | 112.3 |
| CSS3000 | 3 | 76 | 151.4 | 3.2 | 235 | 134.9 | 136.5 | 603.3 | 958.9 | 816 | 114.3 | 133.1 | 134.9 |
